Lathe Bed Rail Milling Machine

For the machine tool manufacturing company, it designs the milling machines for various types of machine bed guide rails. The traditional planer process requires multiple tool change and clamping, with an average of 100 minutes per piece. The machine tool is used to produce only 18 minutes/piece of production beats. Processing is completed at one time. The production efficiency is 5.6 times higher than traditional processes. Effectively reduce labor intensity, increase production and production efficiency, and enhance the competitiveness of enterprises.

產(chǎn)品介紹
The main parameters ?TIPE
UNIT
DGX/Ⅰ DGX/Ⅱ DGX/Ⅲ
Table area (width x length) 630×2000 630×3200 800×4800
Worktable maximum travel 2500 3000 5500
T-slot (number of slots - slot width × slot distance) 5-22×135 5-22×135 5-22×175
Table feed rate Work into mm/min 63~315 100~500 100~500
Fast forward 4400 5950 5950
Spindle center to table distance 100~800 200~900 200~900
Spindle bearing diameter ?110 ?140 ?140
Spindle end specifications Number 50 Number 50 Number 50
Spindle sleeve travel 70 80 80
Spindle speed range r/min 40~275 63~400 63~400
main motor power Kw 15kw 22kw 22kw

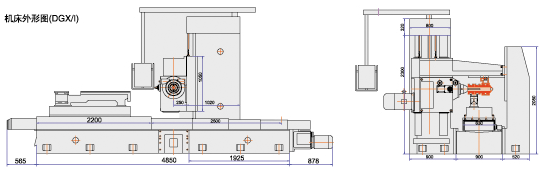

Machine dimension mm3 4850×2900×3200 7800×3600×3600 12400×2870×3290
